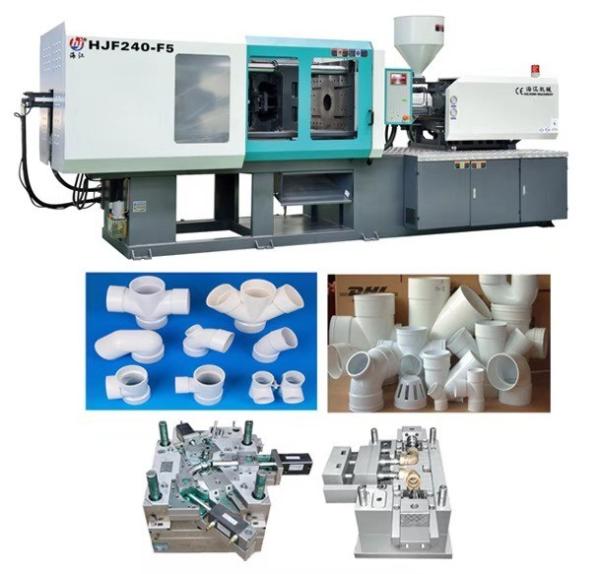

HJF-240 injection molding machine
Injection:
» Injection unit applies double guide post support, equip with fast and strong dual-cylinder balancing injection structure.
» Optimized design screw set, achieve excellent plasticizing effect.
» Using high quality nitride alloy or chrome coated screw and nitride barrel.
Advantages:
1.It adopts imported computer for plastic injection machine , with large screen .High definiyion crystal display and human-computer interface in different languages.Through CPU independent control and individual treatment.It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.
2.Closed loop temperature control system to ensure the accuracy and reliability of the barrel temperature .The functions of cold proof boot, alarming and parameter memory for the molding, with password protection.The injection and switch are controlled by imported ruler.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
Haijiang Machinery Main Configuration
| Controller |
Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) |
| Vane pump |
Albert(USA) |
| Proportional valve |
HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) |
| Directional valve |
HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor |
Dongguan(Guangdong) |
| contactor |
Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose |
Fute(Ningbo) |
| Five-star hydrauhu |
Dandun(China)STAFFA(UK) |
| Air breaker |
LS(Korea) |
| Thermal overland relay |
Schneider(China) |
| Limit switch |
Omoron(Japan) |
| Lubrication pump |
Automatic |
| Servo motor |
SUMITOMO(Japan) |
| Servo pump |
DELTA(Taiwan) |
| Servo sensor |
ASHCROFT(Germany) |
